Course Architecture Family

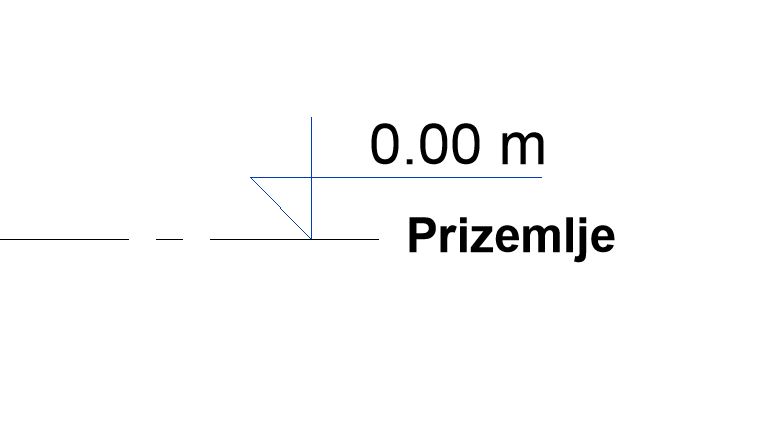

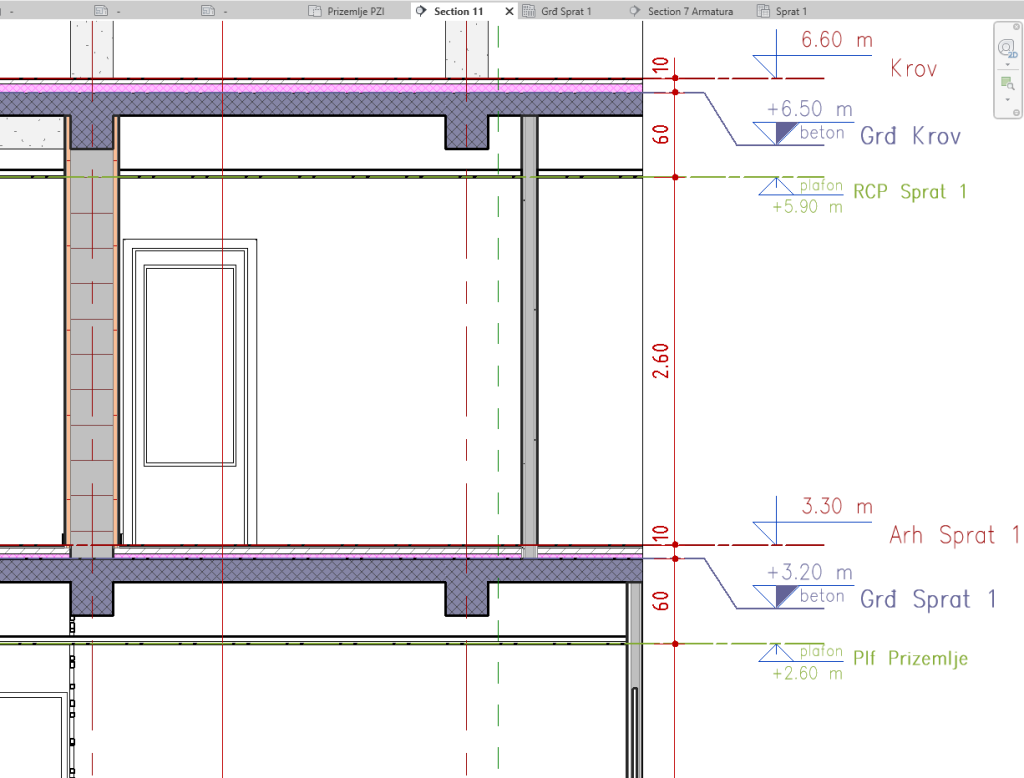

Basic divisions of families and principles of parameterization. The first very hidden 2D families (Level Head, Grid Head, Arrowheads).

2D Profiles intended for forming 3D families (Nosing Profile, Tread Profile, Profile Mullion etc…)

Create Mullion with a Mullion Profile. Making a double glass panel.

Façade Curtain Walls (Curtain Wall), stone facades, create windows by using several nested Curtain Wall families.

Detail about walls setup Sweep & Reveal

2D families for detailing Detail Component, Repeating Detail Component

L constructive pillar. The first 3D family with parameterization of working planes, model shapes, materials, etc…
Chair, practice for mastering modeling tools. Extrusion, Bland, Revolve, Sweep and Swept Bland. Both Solid and Void Forms.
A hole in door shape in the wall.
Window with Above window beam, shutters and window sill. I
Window with Above window beam, shutters window sill. II
Family “SMART DOORS” with nested sub-families for wing I step
Family “SMART DOORS” with nested sub-families for Wing, Frame II step
Family “SMART DOORS” with nested sub-families for Wing, Frame & Hardver. III step
Railings: Balusters, Handrails, Posts, beginnings and ends of handrails I.
Railings: Balusters, Handrails, Posts, beginnings and ends of handrails II.
Ceiling and wall Lighting Fixture.

The number of Classes can be adjusted according to needs. The standard is around 50 Classes.
